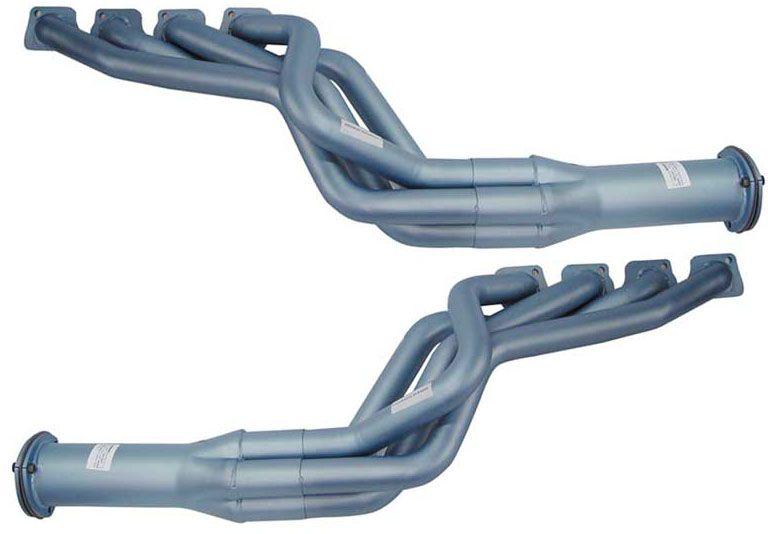

PM TUNED Exhaust Headers 1-1/2" Primary (PH4010)

Application:
Ford Mustang 1964-69 260-302W Manual & Automatic
P/Steering:
Air Cond.:
Oxy. Sen.:
N/A
E.G.R.:
N/A
Y Branch:
N/A
Gasket:
DSF 3

Prim. Pipe:
1-1/2" (38mm)
Sec. Pipe:
Outlet:
Collector 3" (76mm)

Fitting Time:
3 Hrs

* Will fit with XD to XF integrated power steering RH drive
* Will fit LH drive with original steering box
* Will fit 4 speed Ford Top Loader gearbox
* Will fit C4 automatic
* Will fit with Toyota Supra 5 Speed gearbox
* Will not fit with LH drive mechanical clutch
* Will not fit LH drive with ram type power steering
* Will not fit with GT40 Heads as fitted to 302W AU II due to SPark Plug angle
* Will not fit FMX auto
Pacemaker are the pioneers of quality headers featuring the Mandrel bend system. Pacemaker's modern workshop incorporates the very latest equipment available, including aircraft quality computerised benders with revolutionary, patented, vertebrate type mandrel, ensuring perfectly round bends, previously unavailable in Australia. Pacemaker are the only Australian header manufacturer to manufacture their products with pipe over the cone design. The advantages are there is no protruding inside the collector cone, therefore increasing exhaust gas flow and eliminating turbulence inside the exhaust header. The result is better gas flow and increased horsepower.
Additional features include:
Precision cut and machined thick flanges to eliminate leaking and warpage
All headers are jig welded for guaranteed fitment and are checked prior to shipment

Comprehensive fitting instructions with V8 sets, together with hi-tensile header bolts
Emission hookups provided where applicable
Primary pipes fitted through the flanges
Heat proof finish tested to 1270°C
