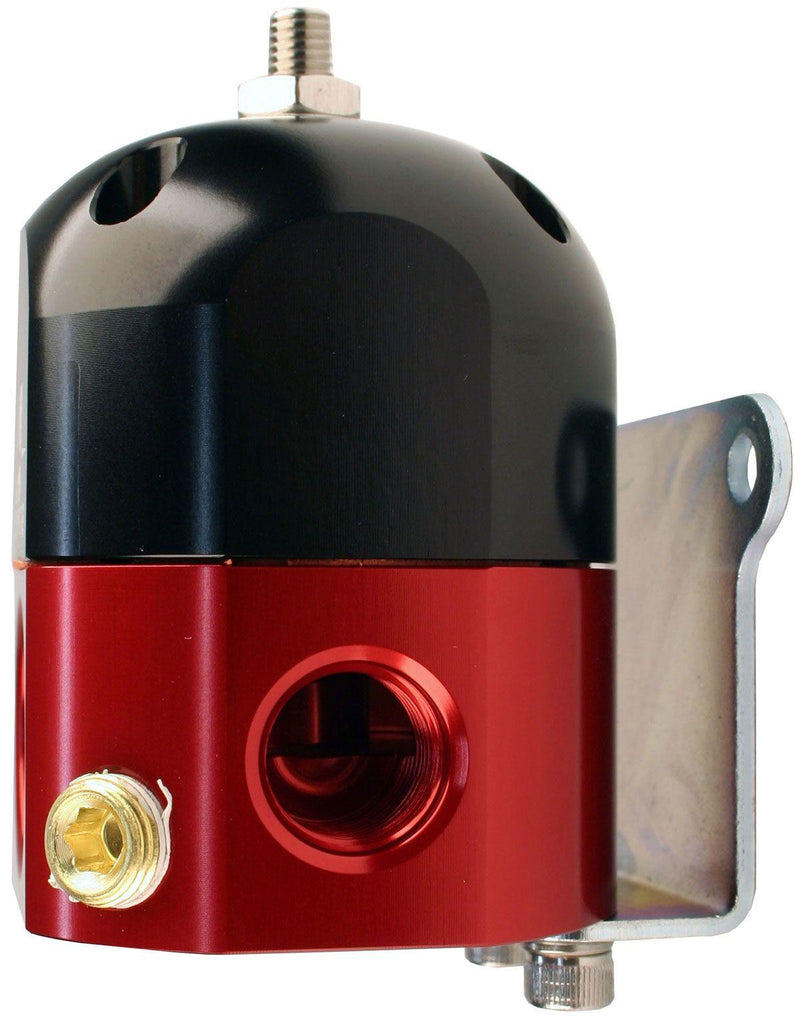

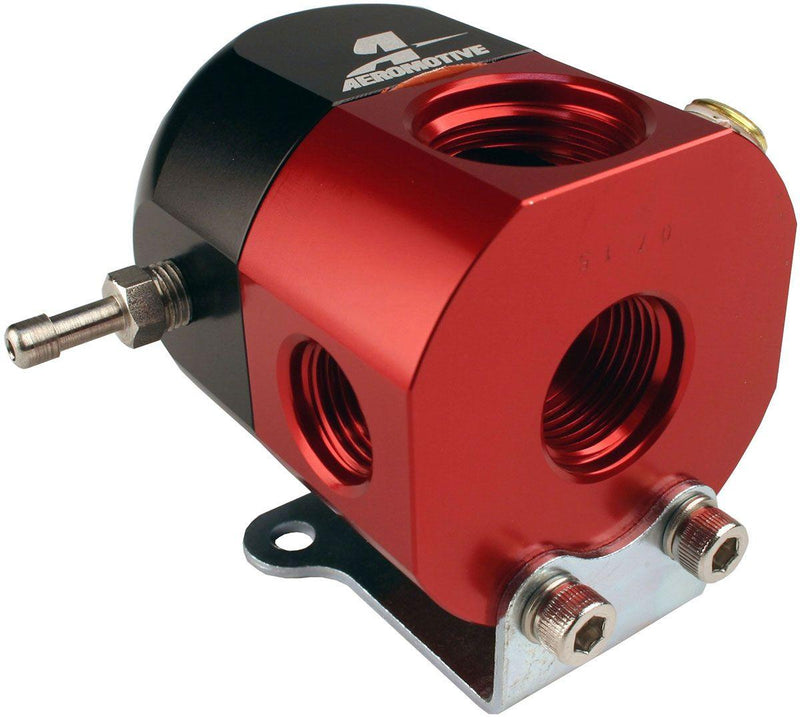

Aeromotive A1000 Carburetted Bypass Fuel Pressure Regulator (ARO13204)

ARO13204 - AEROMOTIVE CARB BYPASS REG

3-15 PSI. ORB-10 Inlet Port, ORB-6 Outlet Ports

Part Number: ARO13204

The A1000 Bypass Regulator was designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carburetted application. This regulator is perfect for naturally aspirated or blow-through supercharged engines.
Features:
Base fuel pressure adjustable from 3-15 PSI
(1) ORB-10 inlet port and (1) ORB-08 return port
(2) ORB-06 outlet ports and 1/8" NPT gauge port

Fuel pressure rises on a 1:1 ratio when referencing boost

Bypass design provides the ultimate, dynamic fuel delivery system
Ideal for converting from fuel injection to carburetion using the stock, in-tank pump
EFI conversions will require a larger-than-stock return line for proper low pressure control
