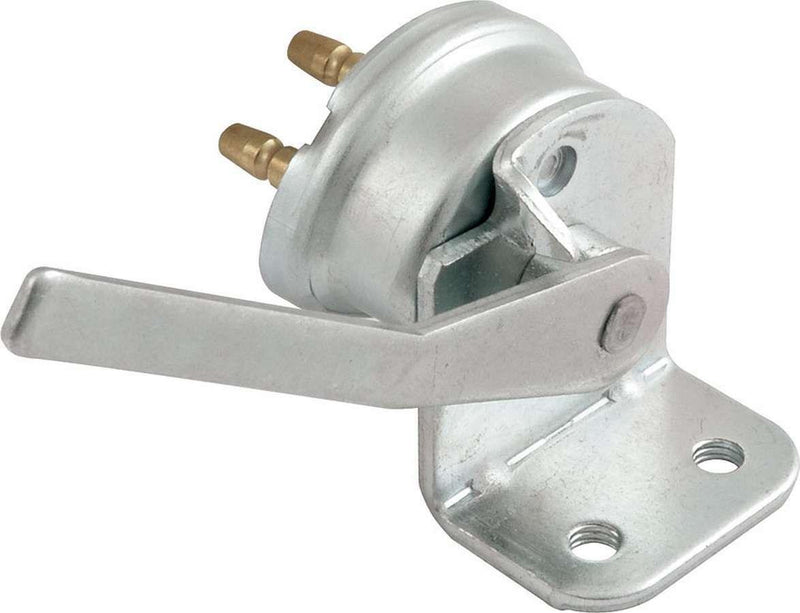

Allstar Brake Light Switch (RS-ALL76250)

RS-ALL76250 - BRAKE LIGHT SWITCH, LEVER TYPE

Lever Type

Part Number: RS-ALL76250

Switch is commonly used with under-floor mounted brake pedal assemblies when switch can contact the brake pedal arm. Spring loaded switch is designed to return to the open position and has two #10-32 tapped mounting holes, 5/8" on centers. Designed for easy two wire connection, one "+" supply and the other to power brake lights or a brake light relay. Switch is rated at 4.5 amps and features two male bullet terminals.
