Haltech NEXUS R5 + Universal Wire-in Harness Kit

Length: 2.5m (8')

Part Number: HT-195200

Suits: Racing application where advanced race features, data logging and power management control is required.

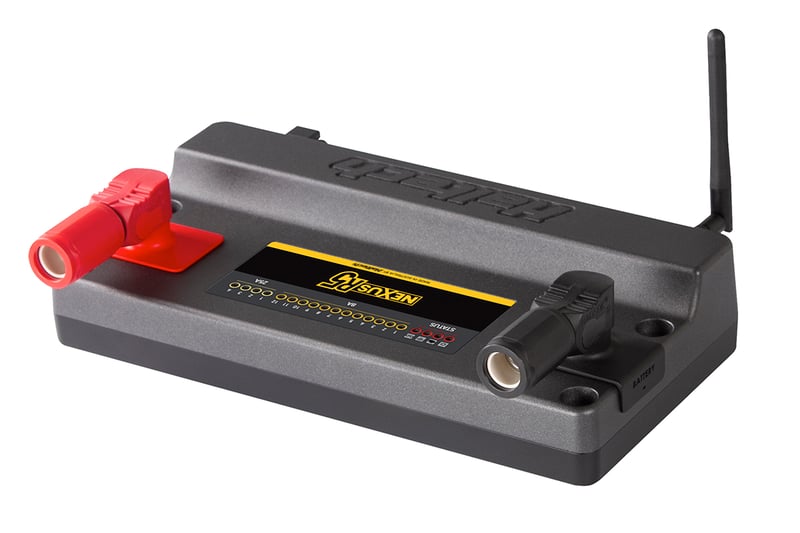

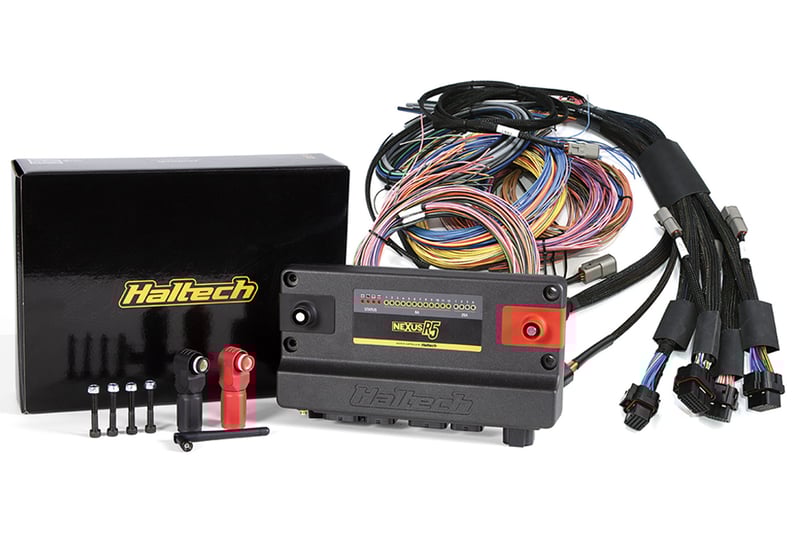

Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4. NEXUS R5 universal engine wiring harness, fire wall grommet 2.5in (63.5mm).

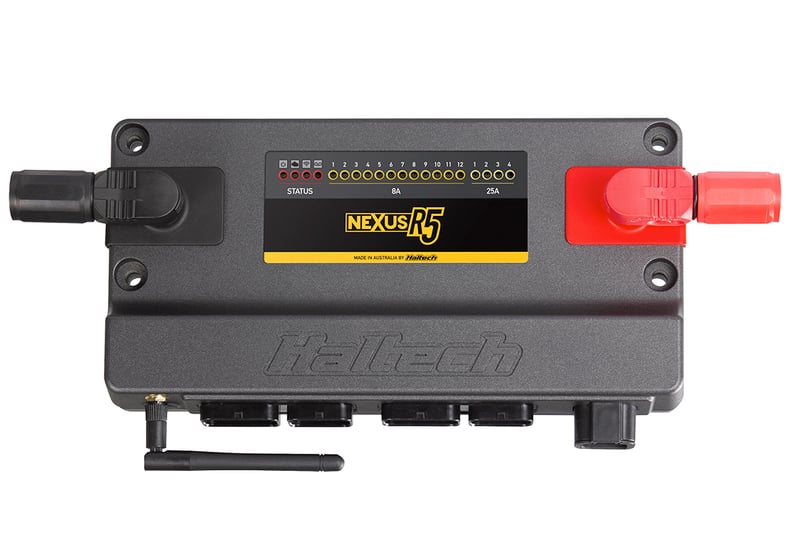

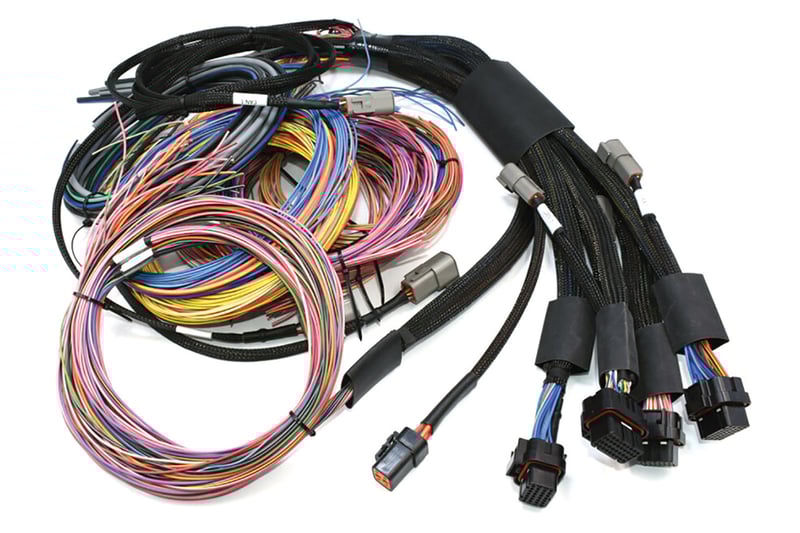

HARNESS OVERVIEW Ideal for dedicated race cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other. All the wires at the unterminated end are colour coded and clearly labelled. Connect your Haltech ECU to the terminated end and follow your wiring diagram for all the engine connections. Load your base map and you're ready to go! Colour coded and labelled wires that match the detailed wiring diagram for a confusion free construction process. The wiring diagram is accompanied by the full VCU manual and Software located on the USB key provided with the VCU, or downloadable from the Haltech Website. VCU OVERVIEW Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit). 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump) 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc) 18 x peak/hold injector drivers (can be used as low side drive outputs) 12 x low current ignition outputs (can be used as low side drive outputs) 8 x low side drive outputs, PWM capable (DPOs) 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs 2 x onboard wideband controllers, supporting NTK and LSU4.9 3 x CAN ports with switchable termination

Features: VCU FEATURES Controlled via NSP (Nexus Software Programmer) Long Term Learning Stepper Motor Control 4D Closed Loop Boost Control Closed Loop CO2 Control Rotational Idle Launch Control Traction Control Anti-Lag Dual Knock Control Trans Brake Control Race Timer Multi Stage Fuel Injection Multi-level Engine Protection 6 Stage Nitrous Control 4-sensor variable cam control Intake Air Bleed Control Flat Shift Control Shock Travel & Ride Height Control Advanced Torque Management On-board Wi-Fi AUTOMATIC TRANSMISSION CONTROL Ford AODE/4R70W GM 4L60E GM 4L80E Toyota A340E Lenco Liberty
