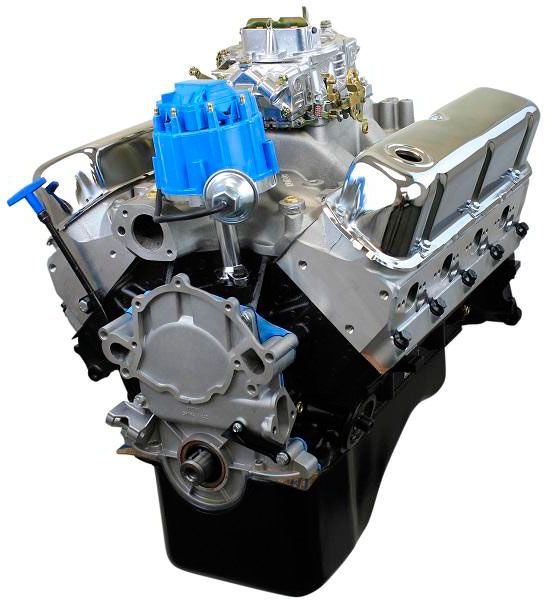

Blueprint SB Ford 408 c.i.d Long Crate Engine (PSEBPF4089CTC)
450 HP/470ft-lbs Torque, 9.8:1 CompThis is a special order item!
We do not carry this item in stock & it will be special ordered for you. Please contact us before ordering for delivery times. Additional freight charges may apply.
PSEBPF4089CTC - FORD CRATE MOTOR 351w 408 CU
450 HP/470ft-lbs Torque, 9.8:1 Comp
Part Number: PSEBPF4089CTC
HP & Torque: 450 HP / 470 FT LBS
Compression Ratio: 9.8:1
Aluminium Heads
Hydraulic Roller Cam
Cast Steel Crank
Forged Pistons
BLOCK:
Hand picked seasoned block
Square and parallel decked
Line honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are Sonic tested for thickness
2-Bolt Main
4.000" Bored
1-Piece Rear Main Seal
Mech fuel pump provision: yes
ROTATING ASSEMBLY:
New Cast steel crankshaft
4.000" Stroke
Forged I-Beam 6.200" connecting rods
Forged Pistons
External 28 Oz. Balance front and rear
CYLINDER HEADS:
BluePrint Aluminium Cylinder Heads -HP9009
60cc chamber
2.02" intake/1.60" exhaust valves
90cc intake/65cc exhaust runners
CAM SPECS:
Roller
.579 Intake / .579 Exhaust
236 Intake / 248 Exhaust duration @ .050 - 114 degree lobe separation
IGNITION TIMING:
34 degrees total at 3500 RPM
ALSO INCLUDES:
Intake manifold
Distributor
Carburettor
Oil pan, timing cover and valve covers
Dyno tested and shipped with results
